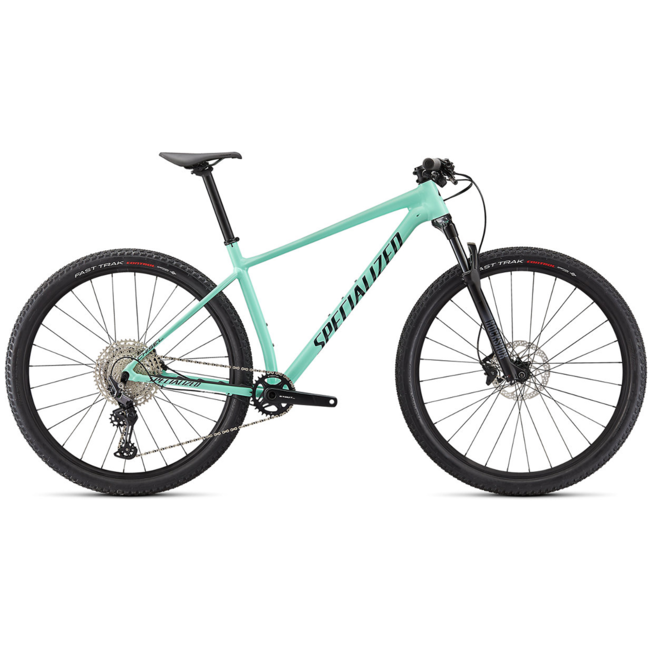

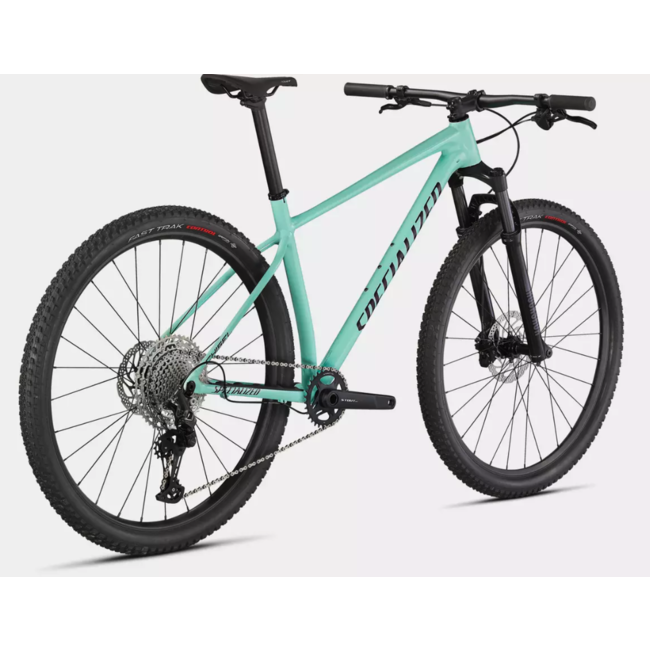

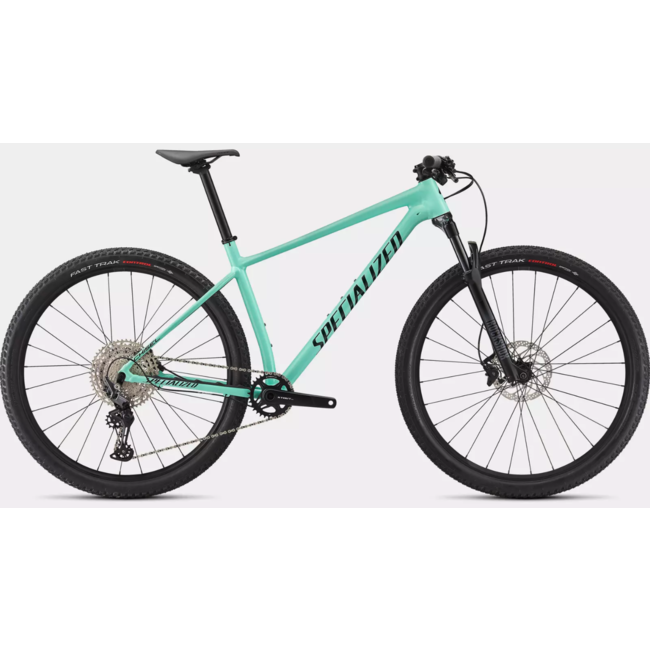

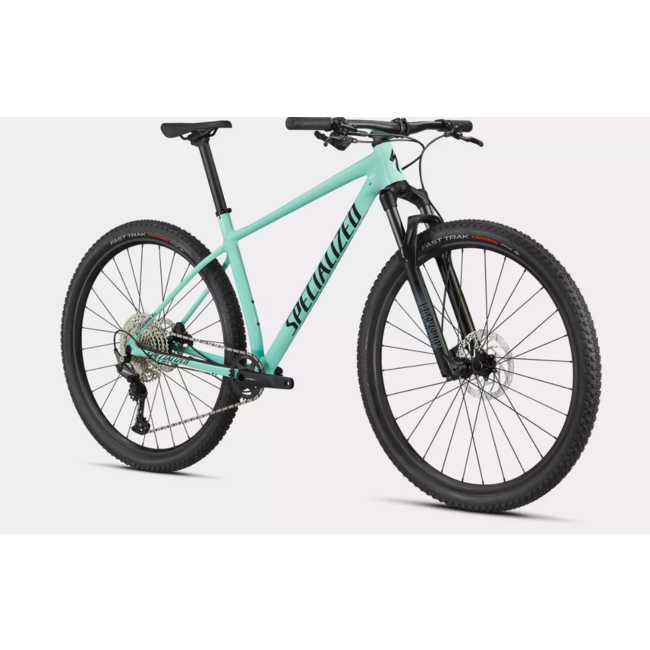

The all-new Chisel has been purpose-built to tackle modern cross country trails and race courses with the utmost speed.
In fact, it shares many of the same modern features as its Epic Hardtail sibling, but in a more budget-friendly package—making it the most efficient and capable alloy hardtail out there.

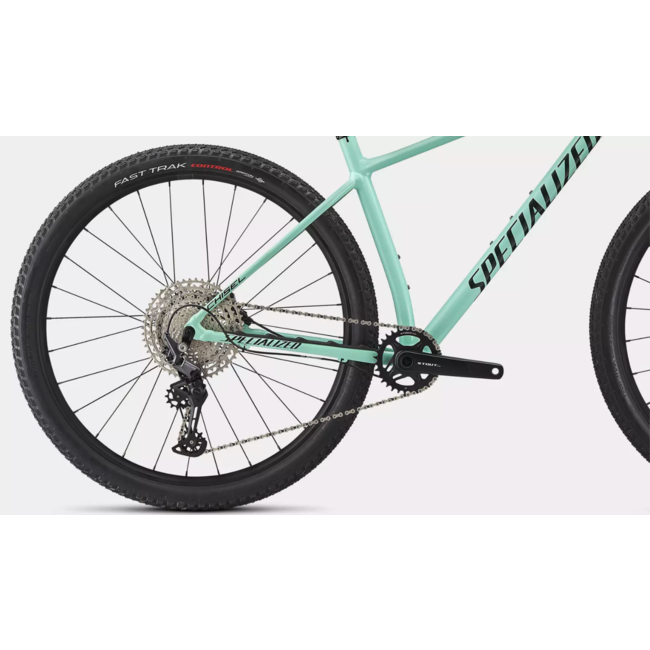

This Chisel comes spec'd with Shimano's tried and true Deore 1x12 speed drivetrain and MT400 hydraulic disc brakes, a RockShox Judy Silver fork, and 25mm internal width alloy wheels wrapped in 2.3 Fast Track Control casing tires.
Handlebars:
Specialized Alloy XC minirise, double-butted alloy, 8-degree backsweep, 6-degree upsweep, 10mm rise, 31.8mm
SeatPost:
Alloy, 2-bolt clamp, 30.9mm
Tape:
Specialized Trail Grips
Stem:
Specialized, 3D-forged alloy, 4-bolt, 7-degree rise
Saddle:
Body Geometry Power Sport, steel rails
Chain:
KMC X12, 12-speed w/ Missing Link™
Bottom Bracket:
BSA for 24mm spindle
Cassette:
Shimano Deore M6100, 12spd w/Hyperglide+, 10-51t
Rear Derailleur:
Shimano Deore, M6100, 12pd, Shadow Plus
Crankset:
Stout Pro, 2-Piece Forged Alloy, Direct Mount chainring
Shift Levers:
Shimano Deore, M6100, I-Spec EV, 12 speed
Inner Tubes:
Presta, 60mm valve
Rear Hub:
Shimano MT410-B, Centerlock 28h, 12x148 Boost, Microspline
Rear Tire:
Fast Trak, Control casing, GRIPTON® compound, 60 TPI, 2Bliss Ready, 29x2.3"
Front Tire:
Fast Trak, Control casing, GRIPTON® compound, 60 TPI, 2Bliss Ready, 29x2.3"
Rims:
Specialized Alloy, hookless, Tubeless ready, 25mm inner width
Front Hub:
Shimano MT410-B, Centerlock 28h, 15x110 Boost
Specialized D'Aluisio Smartweld M5 Alloy, Hydroformed tubes, Progressive XC Geometry, internal cable routing, BSA BB, 12x148mm spacing, 30.9mm Dropper post compatible
Seat Binder:
Specialized Alloy 34.9
Pedals
Spokes:
Stainless, 14g
Rear Brake:
Shimano M4100, 2-piston, 180/160mm
Front Brake:
Shimano M4100, 2-piston caliper, hydraulic disc
Fork:

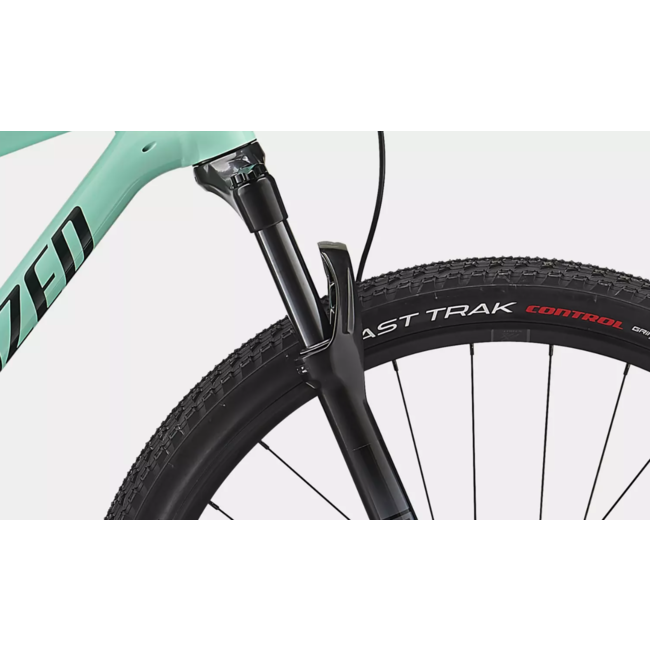

RockShox Judy Silver, TurnKey damper, Solo Air, 42mm offset, 15x110mm thru-axle, 100mm of travel (XS - 80mm travel)
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
XS | S | M | L | XL | |
---|---|---|---|---|---|
Crank Length | 165mm | 170mm | 175mm | 175mm | 175mm |
Handlebar Width | 750mm | 750mm | 750mm | 750mm | 750mm |
Stem Length | 60mm | 60mm | 70mm | 70mm | 70mm |
Saddle Width | 155mm | 155mm | 143mm | 143mm | 143mm |
Seatpost Length | 350mm | 350mm | 400mm | 400mm | 400mm |
Stack | 591mm | 605mm | 605mm | 619mm | 633mm |
Reach | 385mm | 405mm | 430mm | 455mm | 480mm |
Head Tube Length | 95mm | 95mm | 95mm | 110mm | 125mm |
Head Tube Angle | 68° | 68° | 68° | 68° | 68° |
BB Height | 304mm | 309mm | 309mm | 309mm | 309mm |
BB Drop | 68mm | 63mm | 63mm | 63mm | 63mm |
Trail | 103mm | 103mm | 103mm | 103mm | 103mm |
Fork Length, Full | 486mm | 506mm | 506mm | 506mm | 506mm |
Fork Rake/Offset | 44mm | 44mm | 44mm | 44mm | 44mm |
Front Center | 647mm | 674mm | 699mm | 730mm | 760mm |
Chainstay Length | 432mm | 432mm | 432mm | 432mm | 432mm |
Wheelbase | 1070mm | 1099mm | 1124mm | 1154mm | 1185mm |
Top Tube Length, Horizontal | 555mm | 578mm | 603mm | 632mm | 661mm |
Bike Standover Height | 732mm | 762mm | 792mm | 816mm | 847mm |
Seat Tube Length | 367mm | 400mm | 430mm | 470mm | 520mm |
Seat Tube Angle | 74° | 74° | 74° | 74° | 74° |
