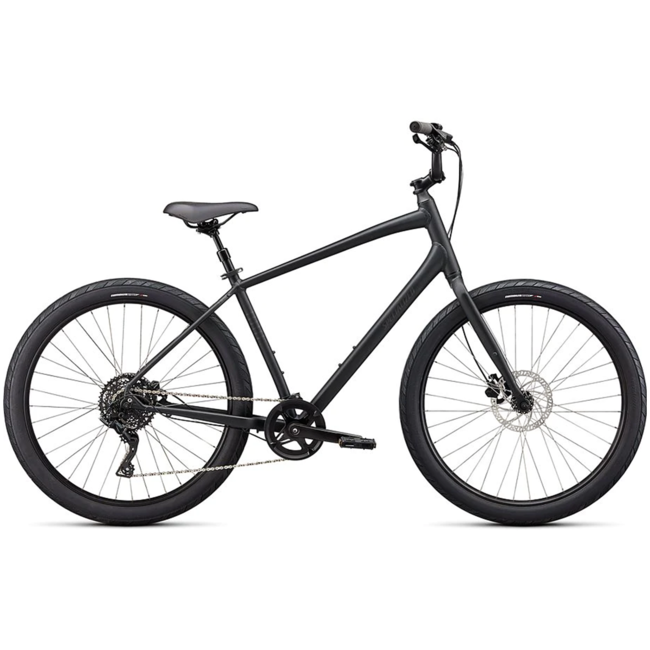

They say that every journey begins with a single step, but when that journey is related to exercise, that first step can sure be a doozy. It can be life-changing, however, and there's no better machine to take the plunge with than with the Roll.
With its lightweight alloy frame, eight speeds of "go fast" gearing, stable and wide 650b tires, and powerful hydraulic disc brakes, the Roll does everything in its power to encourage and motivate you to keep fit and get around in comfortable, efficient style.
Crankset:
3 pc, Alloy Forged Arms
Chainrings:
40T
Bottom Bracket:
68mm, square taper, 124.5mm length
Chain:
KMC X8 w/ Missing Link™, 8-speed
Rear Derailleur:
MicroSHIFT Advent 8 Speed, W/O Clutch
Cassette:
MicroSHIFT, 8-Speed, 12-42t
Shift Levers:
MicroSHIFT, 8-speed
Stem:
3D-forged alloy, 31.8mm, 7-degree rise
Grips:
Slip-on, Closed End Grips
Saddle:
Specialized Body Geometry Comfort Gel

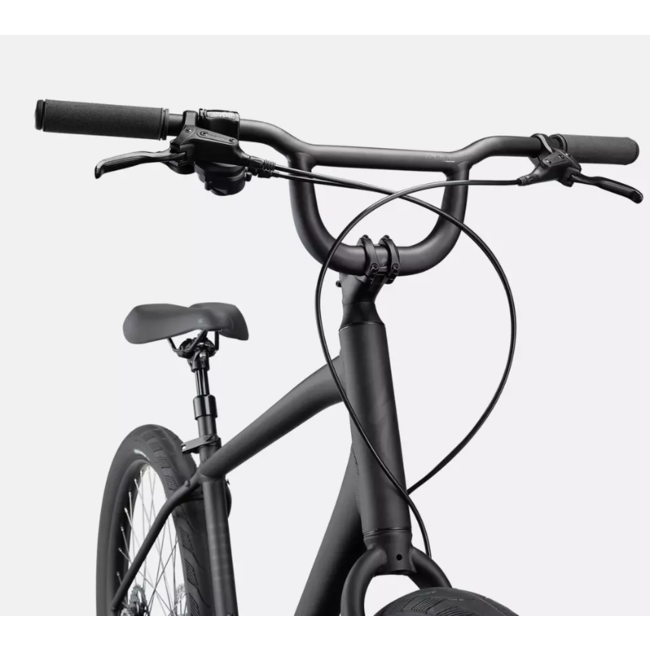

Handlebars:
Specialized Roll, 6061 alloy, Double butted, 15-degree backsweep, 136mm rise, 31.8mm
SeatPost:
Spring suspension, alloy, 27.2mm, 2-bolt clamp
Rims:
650b disc, double-wall alloy, pinned, 32h
Rear Hub:
Alloy, 6-bolt disc, Shimano, 8/9-speed freehub, 135mm spacing, quick-release, 36h
Front Hub:
Alloy, 6-bolt disc, loose ball bearing, quick-release, 32h
Rear Tire:
Nimbus II Sport, 650b x 2.3"
Front Tire:
Nimbus II Sport, 650b x 2.3"
Spokes:
Stainless, 14g
Inner Tubes:
Standard 48mm SV 27.5X1.75/2.4
Seat Binder:
Quick-release clamp, 31.8mm
Frame:
Specialized A1 Premium Aluminum, Ground Control Positioning, formed tubes, post-mount disc, fender/rack mounts
Pedals:
Specialized Body Geometry Fitness, platform, plastic
Fork:
Steel formed tubes, post-mount disc, fender/rack mounts
Rear Brake:
Tektro HD-T275, hydraulic disc, 160 mm rotor
Front Brake:
Tektro HD-T275, hydraulic disc, 180 mm rotor
Weight:
13.8kg (30 lb, 6.8 oz)
Weight Size:
LG
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
| S | M | L | XL | |
|---|---|---|---|---|
| Crank Length | 165mm | 170mm | 175mm | 175mm |
| Handlebar Width | 680mm | 680mm | 680mm | 680mm |
| Stem Length | 70mm | 70mm | 70mm | 70mm |
| Saddle Width | 200mm | 200mm | 200mm | 200mm |
| Seatpost Length | 350mm | 350mm | 350mm | 350mm |
| Stack | 583mm | 616mm | 644mm | 667mm |
| Reach | 346mm | 352mm | 370mm | 392mm |
| Head Tube Length | 155mm | 185mm | 215mm | 240mm |
| Head Tube Angle | 68° | 69° | 69° | 69° |
| BB Height | 285mm | 285mm | 285mm | 285mm |
| BB Drop | 70mm | 70mm | 70mm | 70mm |
| Trail | 84mm | 77mm | 77mm | 77mm |
| Fork Length, Full | 420mm | 420mm | 420mm | 420mm |
| Fork Rake/Offset | 55mm | 55mm | 55mm | 55mm |
| Front Center | 617mm | 624mm | 653mm | 684mm |
| Chainstay Length | 480mm | 480mm | 480mm | 480mm |
| Wheelbase | 1088mm | 1095mm | 1124mm | 1155mm |
| Top Tube Length, Horizontal | 594mm | 613mm | 643mm | 675mm |
| Bike Standover Height | 801mm | 850mm | 881mm | 911mm |
| Seat Tube Length | 375mm | 440mm | 480mm | 520mm |
| Seat Tube Angle | 67° | 67° | 67° | 67° |
