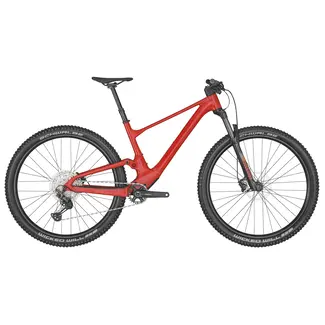

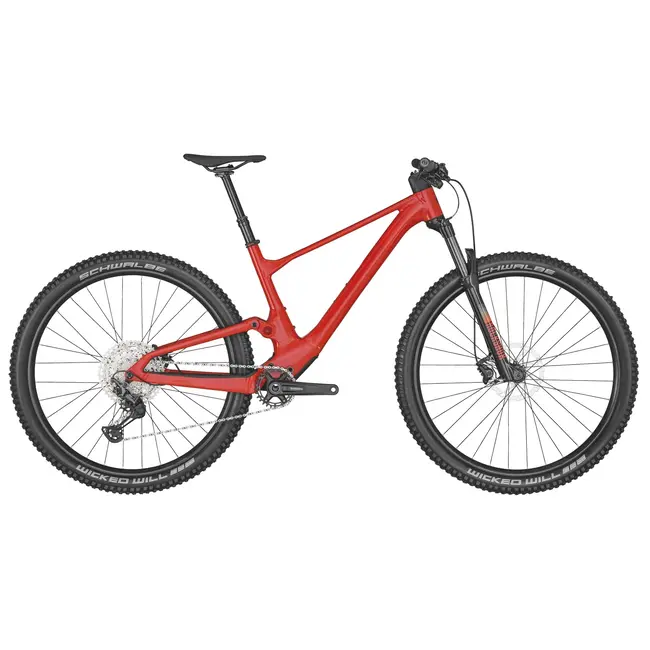

When you think of the perfect mountain bike, what comes to mind? For us, it's the all new Spark 960. Why, you ask? Well, beyond the fact that it is fast, lightweight and ultra capable on all sorts of terrain, it's just damned good lookin'. Short-travel trail bike? "Downcountry" rig? Occasional race bike? Whatever, call it what you want to call it. All we know is that this is one hell of a mountain bike.
Key Features
Spark Alloy SL Frame
RockShox Judy 130mm Fork
X-Fusion Nude 5, 120mm, TwinLoc
Shimano XT-Deore 12 Speed
Shimano Disc Brakes
Syncros X-30SE TR Rims
Schwalbe Wicked Will Tires
Syncros Dropper Post and Parts
Technical Specifications
Frame
Spark Alloy SL 6011
Integrated Suspension Technology
Flex Pivot / Adjustable head angle
Syncros Cable Integration System
BB92 / UDH Interface / 12x148mm with 55mm Chainline
Fork
RockShox Judy Silver TK Solo Air
15x110mm QR axle / 42mm offset / Tapered Steerer
2-Modes / Reb. Adj. / Lockout / 130mm travel
Rear Shock
X-Fusion NUDE 5 RLX Trunnion
SCOTT custom w. travel / geo adj.
3 modes: Lockout-Traction Control-Descend
Reb. Adj.
Travel 120-80-Lockout / T165X45mm
Remote System
SCOTT TwinLoc 2 Technology
Suspension & Dropper Remote
3 Suspension modes
Rear Derailleur
Shimano XT RD-M8100 SGS
Shadow Plus / 12 Speed
Shifters
Shimano Deore SL-M6100-R / Rapidfire Plus
Crankset
Shimano FC-MT512-1
55mm CL / 32T
BB-Set
Shimano BB-MT500 / shell 41x92mm
Chain
KMC X12
Cassette
Shimano Deore CS-M6100-12 / 10-51 T
Brakes
Shimano MT501 Disc
Rotor
Shimano SM-RT54 CL / F&R 180mm
Handlebar
Syncros Fraser 2.0 DC Alloy 6061 D.B.
mini Rise / back sweep 8° / 760mm
Syncros Pro lock-on grips
H'stem
Syncros DC 3.0
Syncros Cable Integration System
0° rise / 6061 Alloy / 31.8mm / 1 1/8"
Seatpost
Syncros Duncan Dropper Post 2.5
31.6mm / S & M size 125mm / L & XL size 150mm
Seat
Syncros Tofino 2.5 Regular
Headset
Syncros - Acros Angle adjust & Cable Routing HS System
+-0.6° head angle adjustment
ZS56/28.6 – ZS56/40 MTB
Hub (Front)
Shimano HB-MT410-B CL / 15x110mm
Hub (Rear)
Shimano FH-MT410-B CL / 12x148mm / Micro Spline
Spokes
Stainless Black 15G / 1.8mm
Rims
Syncros X-30SE / 32H / 30mm
Front Tire
Schwalbe Wicked Will / 29x2.4"
Performance / TLR / Foldable / Addix
Rear Tire
Schwalbe Wicked Will 29x2.4"
Performance / TLR / Foldable / Addix
Approx weight in KG
14.95 (with tubes)
Approx weight in LBS
32.96 (with tubes)
Max. System Weight
128 kg
The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
