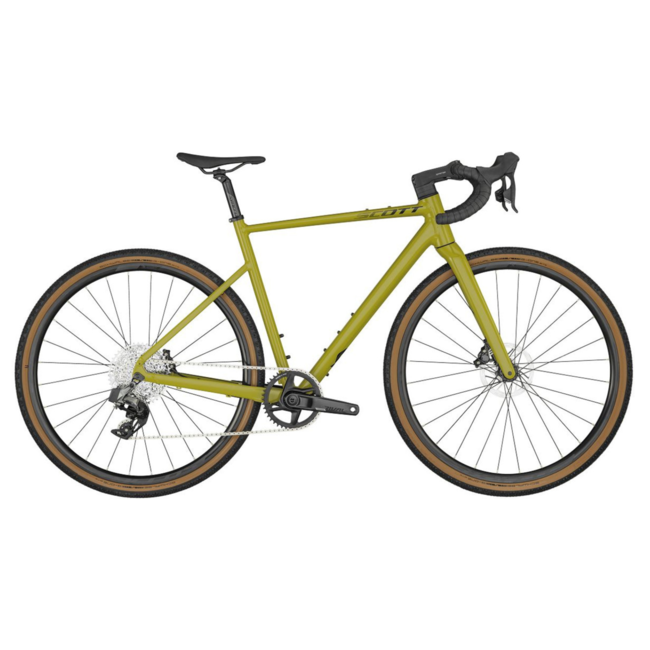

Scott 23 Speedster Gravel 10 56
$2,999.99 Excl. tax
Add to cart
Scott 23 Speedster Gravel 10 56
Scott
(0)

Scott 23 Speedster Gravel 10 56

$2,999.99 Excl. tax
In stock

Speedster Gravel 10

The SCOTT Speedster Gravel 10 is your one stop shop for when the path gets less traveled. Read more.

Product description

SCOTT SPEEDSTER GRAVEL 10



The SCOTT Speedster Gravel 10 is your one stop shop for when the path gets less traveled.



Comfortable geometry for all-day rides, room for big tires and fully internal cable routing make this a great option for those looking to take it off road!



KEY FEATURES

  • Speedster Gravel Disc Alloy Frame
  • Speedster Gravel Carbon Disc Fork
  • SRAM RIVAL AXS 1x12 Speed
  • Syncros Race X25 Disc Wheels
  • Schwalbe G-ONE Bite Tires





Technical Specifications



FRAME

Speedster Gravel Disc / D.Butted 6061 Alloy
SCOTT Gravel geometry / Replaceable Derailleur Hanger
Internal cable routing
Syncros fender kit ready


FORK

Speedster Gravel HMF Flatmount Disc
1 1/4"-1 1/2" Eccentric Carbon steerer


REAR DERAILLEUR

SRAM RIVAL XPLR eTap AXS
12 Speed Electronic Shift System


SHIFTERS

SRAM RIVAL eTap AXS HRD Shift-Brake System


CRANKSET

SRAM RIVAL 1 WIDE Crankset
42 T


BB-SET

SRAM DUB PF ROAD 86.5


CHAIN

SRAM RIVAL


CASSETTE

SRAM XPLR XG1251
10-44


BRAKES

SRAM RIVAL eTap AXS HRD Shift-Brake System
Flatmount


ROTOR

SRAM Paceline rotor 160/F and 160/R


HANDLEBAR

Syncros Creston 2.0 X
Alloy 31.8mm


H'STEM

Syncros RR2.5 1 1/4" / four Bolt 31.8mm


SEATPOST

Syncros RR2.5 27.2/300mm


SEAT

Syncros Tofino Regular 2.5


HEADSET

Acros AIF-1113


HUB (FRONT)

Formula Team XDR CL Disc 28 H


HUB (REAR)

Formula Team XDR CL Disc 28 H


SPOKES

Black 2mm


RIMS

Syncros Race X25 Disc
28 Front / 28 Rear


FRONT TIRE

Schwalbe G-ONE Bite Performance
700x45C


REAR TIRE

Schwalbe G-ONE Bite Performance
700x45C



APPROX WEIGHTS IN KG

9.90

APPROX WEIGHTS IN LBS

21.83

MAX. SYSTEM WEIGHT

120 kg
The overall weight includes the bike, the rider, the equipment, and possible additional luggage.



Geometry

        XXS/47   XS/49   S/52   M/54   L/56   XL/58   XXL/61
A HEAD TUBE ANGLE     70.0 °   70.0 °   70.0 °   71.0 °   71.0 °   71.0 °   71.0 °
B HEAD TUBE LENGTH     93.0 MM 103.0 MM 123.0 MM 143.0 MM 163.0 MM 183.0 MM 203.0 MM
C TOP TUBE HORIZONTAL     512.3 MM 523.0 MM 536.5 MM 556.5 MM 571.2 MM 581.2 MM 594.2 MM
D STANDOVER HEIGHT     747.0 MM 762.0 MM 786.0 MM 806.0 MM 825.0 MM 844.0 MM 869.0 MM
E BB OFFSET     -71.0 MM -71.0 MM -71.0 MM -71.0 MM -71.0 MM -71.0 MM -71.0 MM
F BB HEIGHT     283.0 MM 283.0 MM 283.0 MM 283.0 MM 283.0 MM 283.0 MM 283.0 MM
G WHEEL BASE     1,019.5 MM 1,026.9 MM 1,037.7 MM 1,044.9 MM 1,056.4 MM 1,067.0 MM 1,071.3 MM
H BB CENTER TO TOPTUBE CENTER     430.0 MM 450.0 MM 480.0 MM 500.0 MM 520.0 MM 540.0 MM 570.0 MM
I BB CENTER TO TOP OF SEATTUBE     470.0 MM 490.0 MM 520.0 MM 540.0 MM 560.0 MM 580.0 MM 610.0 MM
J SEAT ANGLE     75.0 °   74.5 °   74.0 °   73.0 °   72.5 °   72.5 °   72.5 °
K CHAINSTAY     435.0 MM 435.0 MM 435.0 MM 439.0 MM 439.0 MM 439.0 MM 439.0 MM
L REACH     374.0 MM 378.0 MM 382.0 MM 387.0 MM 392.0 MM 396.0 MM 403.0 MM
M STACK     519.0 MM 528.4 MM 547.2 MM 570.0 MM 588.9 MM 607.8 MM 626.8 MM
N STEM LENGTH     73.0 MM 83.0 MM 93.0 MM 103.0 MM 103.0 MM 113.0 MM 113.0 MM



Specifications

EAN Code
192820746333
SKU
290508-056
